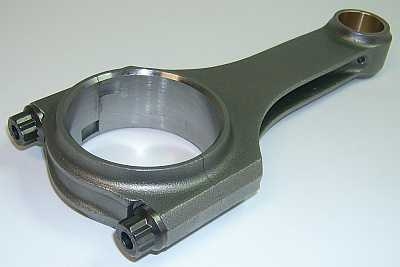

H-Shaft Conrod EN24 V for Fiat Twin engines with modified crank mechanism:

reference values:

- center to center length: 120mm
- big end diameter: 47,14mm
- big end width: 24,7mm
- pin end diameter: 20,02mm
- pin end width: 21,5mm
- total weight: 391gr.
- rotate weight: 285gr.
- recip. wight: 106gr.

Price per exemplar, you need 2 exemplars for one Fiat Twin Engine.
